MagFlex-96 aNAP System 은 마그네틱 비드 기반 핵산 정제를 위한 고처리량 자동화 플랫폼으로, 한 번에 최대 96개의 샘플을 빠르고 안정적으로 처리할 수 있습니다.
혈액, 조직, 분변, 토양, 미생물, 환경 샘플 등 다양한 샘플에서 고품질의 DNA 및 RNA를 추출할 수 있으며, 자사 MagBeads FastDNA/RNA Kit (Ready-to-Use for MagFlex-96) 를 비롯해 여러 상업용 마그네틱 비드 기반 추출 키트와도 폭넓게 호환됩니다.
온도 제어, UV 살균, 커스텀 프로토콜 저장 기능 등 유연한 워크플로우를 갖추고 있어 실험실 규모와 작업량에 따라 최적의 조건으로 장비를 운영할 수 있습니다. 또한 직관적인 7인치 터치스크린과 컴팩트한 설계로 공간 효율성을 높였으며, 자동화를 통해 최소한의 핸즈온으로 일관되고 재현성 높은 결과를 제공합니다.
다양한 생물학적 샘플을 대상으로 검증된 추출 효율을 통해 MagFlex-96의 성능과 적용 가능성을 입증하였습니다 (그림 1).

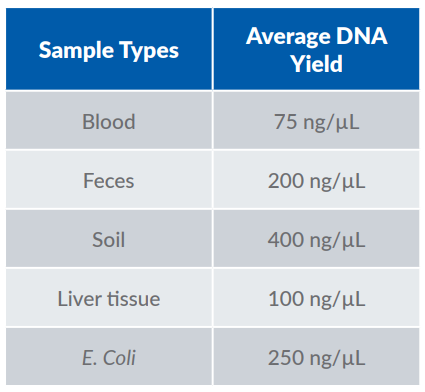

그림 1. 다양한 샘플 유형에서의 MagFlex-96 추출 성능 평가
MagFlex-96 aNAP system과 MagBeads Kit를 사용하여 human blood (500 µL), human feces (100 mg), compost soil (250 mg), mouse liver tissue (5 mg), E. coli bacterial culture에서 DNA를 추출한 결과, 모든 샘플에서 높은 수율의 DNA를 안정적으로 확보할 수 있음을 확인하였습니다.
| SKU | 116013500 |
| Base Catalog Number | 6013500 |
| Dimensions | 510 mm x 490 mm x 480 mm (W x L x H) |
| Net Weight | 45 kg |
| Pack Size | 1 Each |
| Reaction Volume | 30 – 1000 µL |
| Sample Capacity | 96 samples |
| Certificate | RUO |
| Power supply | AC 100V-240V, 50/60HZ; 600VA |
| Lysing/Elution Temperature | RT - 120 °C |
| Speed (rotational) | ≤3000rpm |
| Mixing technology | Rotary mixing |
1. What is the MagFlex-96 aNAP System used for?
The MagFlex-96 aNAP System is an automated magnetic bead-based nucleic acid purification system for preparing DNA and RNA from compatible biological and environmental research samples. Purified nucleic acids can support downstream molecular assays.
2. How many samples can MagFlex-96 process in one run?
The MagFlex-96 supports flexible processing from 1 to 96 samples per run, depending on the selected reagent plate or compatible low-throughput format.
3. How long does automated DNA or RNA extraction take?
MP Biomedicals describes typical runs of approximately 30–60 minutes for supported workflows. Actual processing time depends on sample type, extraction kit chemistry, purification protocol, and instrument settings.
4. Which sample types can be processed with the MagFlex-96?
With suitable extraction kits, supported applications include blood, tissues, cells, fecal or microbiome samples, soil, and other sample matrices. Check the instructions for each MagBeads extraction kit to confirm validated sample inputs and workflow requirements.
5. Does the MagFlex-96 work with MagBeads extraction kits?
Yes. MP Biomedicals offers MagBeads extraction kits designed for use with the MagFlex-96 aNAP System. Kit selection depends on the required nucleic acid type, DNA or RNA, and the sample matrix.
6. Does MagFlex-96 support low-throughput and high-throughput extraction?
Yes. Compatible low-throughput Autotube configurations and 96-well reagent plates allow laboratories to adjust sample throughput without requiring a separate instrument for different batch sizes.
7. How does rotary mixing support nucleic acid purification?
The instrument uses rotary mixing together with magnetic rods and protective sleeves to support magnetic bead-based purification. The manufacturer describes this approach as helping to limit aerosol formation and reduce cross-contamination risk. Appropriate sample handling and contamination-control procedures remain necessary.
8. Can MagFlex-96 prepare DNA or RNA for PCR, qPCR, or NGS?
Yes. The MagFlex-96 can prepare purified nucleic acids for downstream molecular research applications, including PCR, qPCR, and next-generation sequencing (NGS), provided that the selected extraction kit, sample preparation method, and resulting nucleic acid quality meet the requirements of the downstream assay.
9. Is the MagFlex-96 aNAP System intended for clinical diagnosis?
No. The MagFlex-96 aNAP System (RUO) is intended for research use only and is not intended for use in diagnostic procedures.
